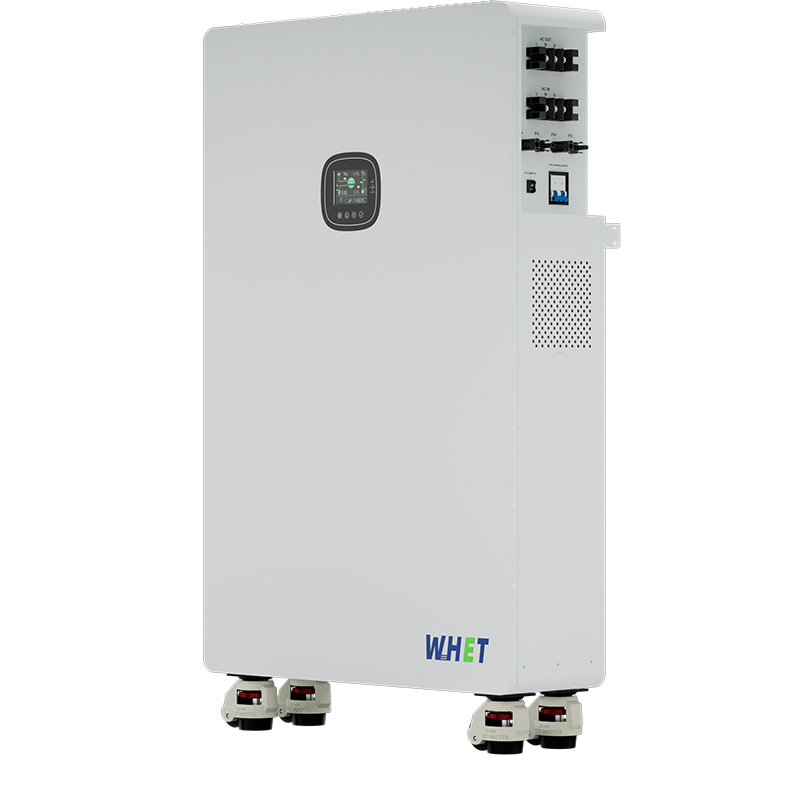

Product Overview
The 16kWh all-in-one energy storage system combines a 51.2V 314Ah LiFePO4 battery with a 10kW hybrid inverter, delivering a compact, efficient, and easy-to-install solution for residential energy storage.
With approximately 16kWh (≈16 units of electricity) of usable energy, it is ideal for powering essential home appliances, increasing solar self-consumption, and providing reliable backup power during grid outages.
Designed for both on-grid and off-grid applications, this system simplifies installation while maximizing performance and energy independence.
Key Features
All-in-One Integrated Design
Battery and inverter are built into one unit, reducing installation time, wiring complexity, and overall system cost.
Stable 10kW Output (220V)
Provides reliable power for daily household appliances such as lighting, refrigerators, TVs, and small air conditioners.
High Safety LiFePO4 Technology
Offers excellent thermal stability and safety performance compared to other lithium battery chemistries.
Long Cycle Life
Supports over 8000 cycles at 80% depth of discharge, ensuring long-term reliability and lower lifecycle cost.
Built-in Smart BMS
Provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and overtemperature.
Energy & Performance
With a total energy capacity of 16.07kWh, this system can support essential household loads for extended periods during power outages.
It also enables efficient solar energy storage, allowing users to store excess daytime generation and use it at night, improving overall energy efficiency and reducing electricity bills.
Flexible Expansion
Modular & Scalable Design
Supports parallel connection of multiple units, enabling flexible expansion from small residential systems to larger energy storage projects.
This makes it an ideal choice for distributors, installers, and growing energy demands.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Energy Capacity | 16.07kWh |
| Cycle Life | ≥8000 cycles (80% DOD) |
| Max Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Max Continuous Charge Current | 100A |
| Max Continuous Discharge Current | 200A |
| Communication | CAN / RS485 |
| Operating Temperature | -20°C to 60°C |
| Installation | Floor-standing |
| Output Voltage | 220 V |
| Inverter Power | 10kW Hybrid Inverter |
Applications
– Home energy storage systems
– Residential solar systems
– Backup power supply
– Off-grid energy solutions
– Small commercial energy storage
Compatibility
Technical support and system debugging services are available to ensure smooth deployment.
Why Choose LiFePO4 Battery for Solar Storage
Compared with traditional lead-acid batteries, LiFePO4 technology offers:
Longer cycle life (6000+ cycles)
Higher efficiency (>95%)
Maintenance-free operation
Lighter weight and compact design
These advantages make it the preferred choice for modern solar energy storage systems.
Customization & OEM Support
We offer flexible OEM and customization services to meet various project requirements:
Capacity customization
BMS communication protocol customization
Private label branding
Energy storage system integration
Ideal for distributors, installers, and project developers.

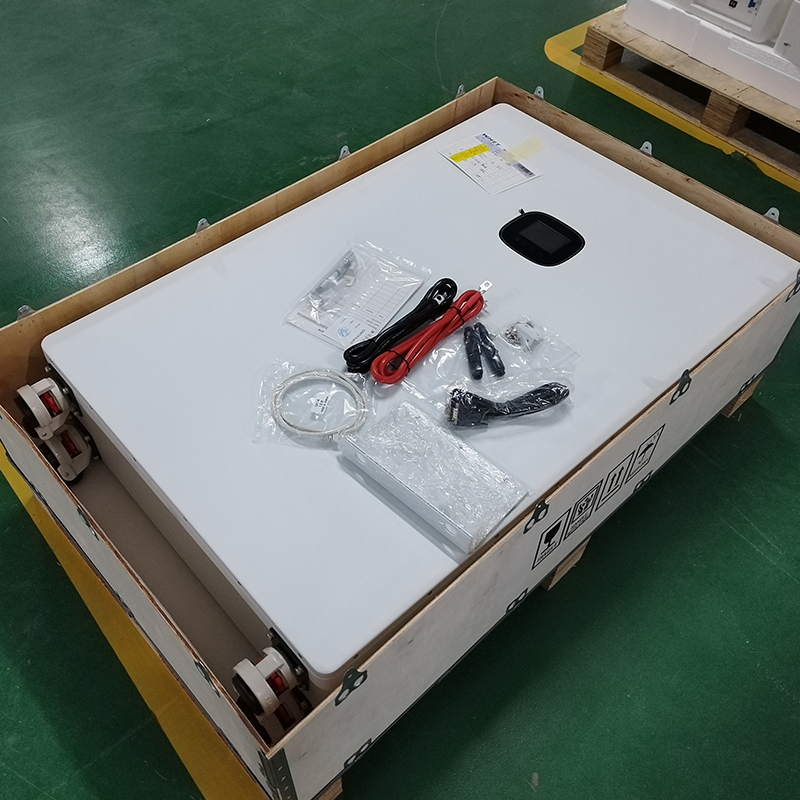

Packaging & Delivery
Standard export packaging ensures safe transportation.
Flexible shipping options available: Sea, Air, or Express.
Global delivery support with professional logistics solutions.
Get a Quote
Looking for a reliable all-in-one energy storage solution?
Contact us today for pricing, technical details, and customization options. Our team will provide fast and professional support for your project.
