Product Overview
The 10kWh Home Solar Energy Storage System is a complete residential power solution designed for homeowners seeking energy independence and reliable backup power.

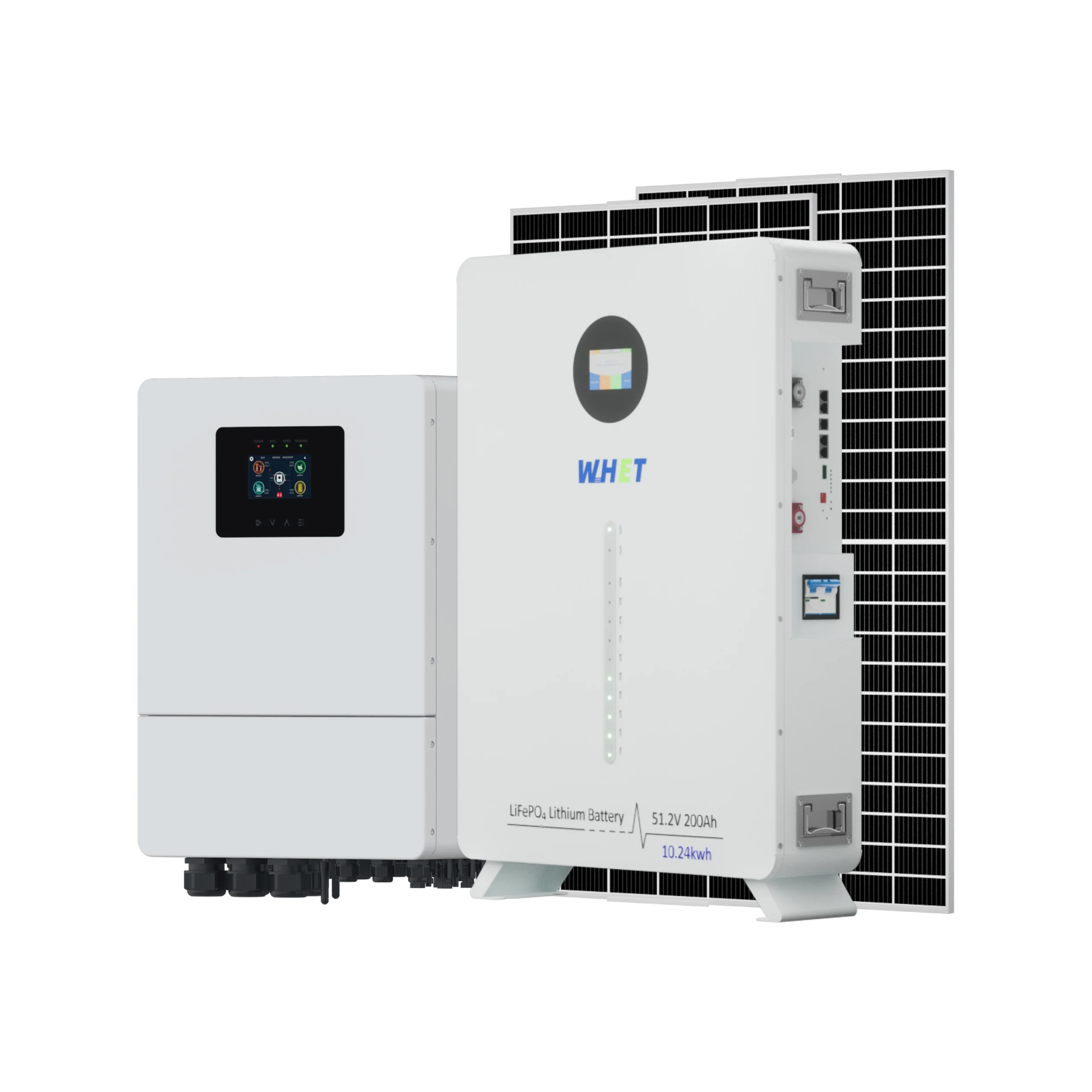

The system integrates a 51.2V 200Ah LiFePO4 battery, 10kW hybrid inverter, and eight 620W high-efficiency solar panels, providing approximately 4.96kW photovoltaic generation capacity.
With intelligent energy management, the system stores excess solar energy during the day and supplies power to household loads when needed, helping reduce electricity costs and improve energy security.
Key Features
10kWh LiFePO4 Battery Storage
Equipped with a 51.2V 200Ah LiFePO4 battery, the system provides approximately 10.24kWh energy capacity for daily household energy storage and backup applications.
The battery delivers stable performance, high safety, and long service life compared with traditional lead-acid batteries.
Powerful 10kW Hybrid Inverter
The 10kW hybrid inverter supports intelligent energy conversion between solar panels, battery storage, household loads, and the utility grid.
It enables both grid-connected and backup operation modes for flexible residential energy management.
4.96kW Solar Generation Capacity
The system includes eight 620W solar panels, providing up to 4.96kW photovoltaic generation capacity.
Solar energy can be directly used by household appliances, stored in the battery, or exported depending on system configuration.
Intelligent Energy Management
The integrated monitoring system allows users to track:
• Solar generation
• Battery charging status
• Household consumption
• Grid power usage
• System operating status
Safe & Reliable LiFePO4 Technology
The battery uses LiFePO4 chemistry, providing excellent thermal stability, high safety performance, and long cycle life.
The intelligent BMS provides protection against:
• Overcharge
• Over-discharge
• Overcurrent
• Short circuit
• Overtemperature
Expandable Energy Storage
The modular battery design supports parallel connection, allowing users to expand storage capacity according to future energy requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | LiFePO4 |
| Battery Voltage | 51.2V |
| Battery Capacity | 200Ah |
| Energy Capacity | 10.24kWh |
| Inverter Power | 10kW Hybrid Inverter |
| Solar Panels | 8 × 620W |
| PV Capacity | 4.96kW |
| Cycle Life | ≥6000 Cycles |
| Communication | CAN / RS485 |
| Battery Protection | Smart BMS |
| Installation | Floor-standing |
Applications
• Residential Homes
• Villas
• Off-grid Houses
• Vacation Homes
• Backup Power Systems
• Solar Self-consumption Projects
• Rural Electrification
Benefits
Reduce Electricity Costs
Store solar energy during daytime and use stored power during peak electricity periods or at night.
Reliable Backup Power
Automatically provide backup energy during grid outages, keeping essential household appliances running.
Improve Solar Utilization
Increase self-consumption of solar energy and reduce wasted photovoltaic generation.
Energy Independence
Generate, store, and manage your own electricity for a more sustainable and independent energy lifestyle.
Why Choose WHET
• Complete Residential Solar Solutions
• Professional LiFePO4 Battery Manufacturing
• OEM & ODM Support
• Flexible System Configuration
• Technical Support
• Global Delivery Capability
Customization & OEM Support
We provide flexible customization services to meet different residential energy storage requirements.
Available options include:
• Battery Capacity
• Inverter Brand Selection
• Solar Panel Configuration
• Communication Protocol
• OEM Branding
• Complete System Integration
